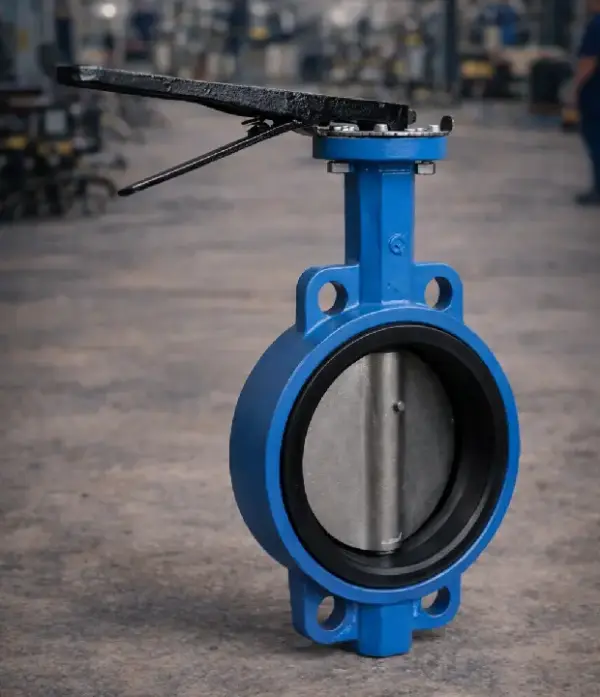

Wafer Butterfly Valve

Wafer Type Butterfly Valve

Categories: , ,

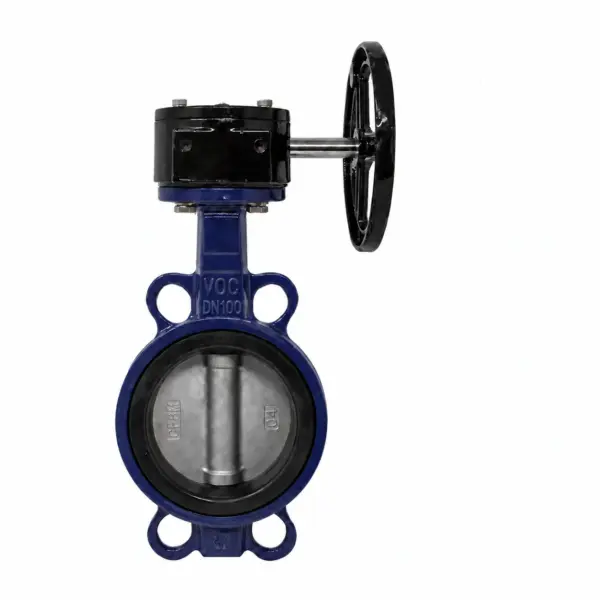

Wafer Type Butterfly Valve Manufacturer in Canada

Designed for compact piping systems, wafer type butterfly valves offer dependable flow isolation, minimum operating torque, and effective shut-off. When put between two pipe flanges, they reduce space needs and provide trustworthy sealing performance. ValvesOnly Canada is a prominent Wafer Type Butterfly Valve Manufacturer in Canada, providing top-notch valve solutions across Toronto, Calgary, Edmonton, Vancouver, Montreal, and all over Canada.

Wafer Type Butterfly Valve Technical Specifications:

  • Nominal Size: 2″ to 72″
  • Pressure Class: Class 150 to Class 600
  • Temperature Range: -29°C to 425°C
  • End Connection: Wafer Type
  • Operation: Lever Operated, Gear Operated, Pneumatic Actuated, Electric Actuated
  • Seat Type: Soft Seat / Metal Seat
  • Design Standards: API 609, ASME B16.34, MSS SP-67, MSS SP-68
  • Inspection and Testing: API 598, ISO 5208, Hydrostatic Pressure Test, Seat Leakage Test, Torque Verification, Operational Test

Wafer Type Butterfly Valve Construction Materials:

Body and Pressure Retaining Components:

  • EN 1561 GG25 Cast Iron
  • EN 1563 GGG40 / GGG50 Ductile Iron
  • ASTM A216 WCB Carbon Steel
  • ASTM A351 CF8 / CF8M
  • ASTM A182 F304 / F316
  • ASTM A890 F51
  • ASTM A890 F53 / F55 / 2507
  • ASTM B148 Aluminium Bronze C95800

Trim Material Options:

  • Disc: Stainless Steel / Duplex Stainless Steel / Aluminium Bronze
  • Stem: ASTM A182 F304 / F316
  • Seat Ring: EPDM / NBR / PTFE / Metal Seat

Sealing System:

  • Seat: Soft Seated / Metal Seated
  • Gasket: EPDM / PTFE
  • Packing: Graphite / PTFE

Wafer Type Butterfly Valve Operating Process:

A quarter-turn valve called a wafer type butterfly valve is made to control or separate the flow of liquids and gases in industrial piping systems. For reliable flow control, its small wafer body is placed in between two pipeline flanges, giving a lightweight and space-saving option.

A 90-degree twist opens or closes the spinning disc, allowing for smooth operation and low operating torque. It is a sensible option for many industrial uses because to its compact size, regular sealing efficiency, and simple installation.

Wafer Type Butterfly Valve Material Selection:

Standard Materials

Component Material Grade Typical Application
Body Cast Iron EN 1561 GG25 Water distribution systems
Body Ductile Iron EN 1563 GGG40 / GGG50 Utility and industrial pipelines
Body Stainless Steel ASTM A351 CF8 / CF8M, ASTM A182 F304 / F316 General industrial and corrosive services
Body Duplex Stainless Steel ASTM A890 Grade 4A (F51) Offshore, seawater, and corrosive process applications
Body Super Duplex Stainless Steel ASTM A890 Grade 5A (F55) / Grade 6A (2507) High chloride and aggressive marine environments
Body Alloy 20 ASTM A351 CN7M Acidic chemical processing and sulfuric acid service

Additional Material Options:

  • ASTM A351 CN7M Alloy 20 for sulfuric acid and acidic chemical applications
  • Duplex Stainless Steel (ASTM A890 F51) for seaward and seaworthy use
  • For highly corrosive chloride settings, super duplex stainless steel (ASTM A890 F55 / 2507).
  • Aggressive oxidizing and chemical conditions call for Hastelloy C276.
  • High-temperature, heavily corrosive service with Inconel 625/Inconel 825
  • Grade 2 or Grade 5 titanium for desalination, seawater, and environments with high corrosion
  • Different temperature, pressure, and process needs may be met by selecting a custom seat, disc, stem, and trim material.

Wafer Type Butterfly Valve Design Features:

Valve Type: Wafer Type Butterfly Valve

Operation:

  • Lever Operated
  • Gear Operated
  • Pneumatic Actuated
  • Electric Actuated

Body Construction: Wafer Type Body

Disc Design: Concentric Disc

Mounting: ISO 5211 Direct Mounting Pad

Performance Features:

  • Compact valve construction
  • Bi-directional leak-proof seal
  • Low torque requirements
  • Quater turn movement
  • Simple installation on pipeline flanges
  • Used as isolator and regulator
  • Can be operated manually or through automation
  • Long life with low maintenance requirements

Inspection Procedures:

  • Hydrostatic Pressure Testing
  • API 598 Seat Leakage Testing
  • ISO 5208 Leakage Testing
  • Operational Torque Verification
  • Visual and Dimensional Inspection

Wafer Type Butterfly Valve Connection Options:

Our Wafer Type Butterfly Valve is  designed for easy installation in a variety of industrial piping systems.

  • Wafer Type End Connection
  • Installed between ASME and DIN flanges
  • ISO 5211 mounting pad for actuator installation
  • Compatible with manual and automated actuation systems
  • Customized configurations available based on project requirements

Wafer Type Butterfly Valve Application Areas:

  • Water and wastewater treatment – Distribution lines, filters, and pumping stations
  • Oil and gas – Process plants and utility pipelines
  • Petrochemical industry – Process units and hydrocarbon systems
  • Power generation – Cooling water systems and utility services
  • Marine industry – Seawater systems and shipboard pipework
  • Offshore industry – Platform utility systems and seawater systems
  • Mining and mineral processing – Process water systems, slurry handling, and utility services
  • Fire fighting systems – Industrial fire water distribution systems
  • Desalination plant – Seawater systems
