Lug Type Butterfly Valve Manufacturer in Canada

Lug Type Butterfly Valves provide an alternative in situations where there is a need to carry out pipeline maintenance without shutting down the whole system. Their threaded lug body allows independent flange connections, providing reliable flow isolation and easy servicing. ValvesOnly Canada is a prominent Lug Type Butterfly Valve Manufacturer in Canada, serving industries in Toronto, Calgary, Edmonton, Vancouver, Montreal and all across Canada.

Lug Type Butterfly Valve Design Specifications:

• Nominal Size: 2″ to 48″
• Pressure Class: Class 150 to Class 600
• Temperature Range: -29°C to 425°C
• Design Standards: API 609, ASME B16.34, MSS SP-67, MSS SP-68
• Testing Standards: API 598, ISO 5208
• Inspection and Testing: Hydrostatic Pressure Test, Seat Leakage Test, Operational Test

Lug Type Butterfly Valve Material Composition:

Body and Pressure Retaining Parts:

• EN 1561 GG25 Cast Iron
• EN 1563 GGG40 / GGG50 Ductile Iron
• ASTM A216 WCB Carbon Steel
• ASTM A351 CF8 / CF8M
• ASTM A182 F304 / F316
• ASTM A890 F51 Duplex Stainless Steel
• ASTM A890 F53 / F55 / 2507 Super Duplex Stainless Steel
• ASTM B148 C95800 Aluminium Bronze

Internal Components:

• Disc: Stainless Steel / Duplex Stainless Steel / Aluminium Bronze
• Stem: ASTM A182 F304 / F316
• Seat Ring: EPDM / NBR / PTFE / Metal Seat

Lug Type Butterfly Valve Sealing Configuration:

• Seat: Soft Seated / Metal Seated
• Gasket: EPDM / PTFE
• Packing: Graphite / PTFE

Lug Type Butterfly Valve Operating Mechanism:

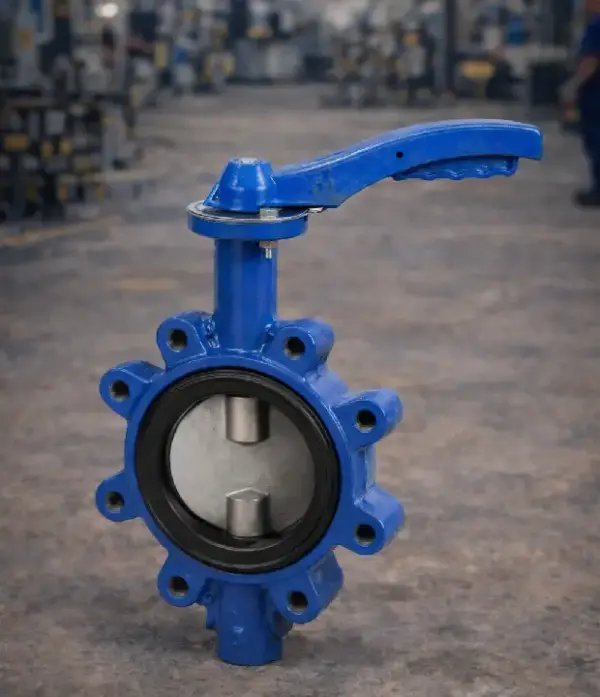

Lug Type Butterfly Valve is characterized by threaded lugs that enable each of the flanges on the pipelines to be bolted individually to the body of the valve. Such an arrangement allows one side of the pipeline to be opened without shutting down the other side, making this type of valve ideal for use in dead ends and maintenance applications.

The quarter-turn disc arrangement makes such valves easy and quick to open and close using little operating force.

Lug Type Butterfly Valve Available Materials:

Standard Materials:

Component	Material	Grade	Typical Application
Body	Cast Iron	EN 1561 GG25	Water distribution systems
Body	Ductile Iron	EN 1563 GGG40 / GGG50	Water and utility applications
Body	Carbon Steel	ASTM A216 WCB	General industrial service
Body	Stainless Steel	ASTM A351 CF8 / CF8M, ASTM A182 F304 / F316	Chemical processing
Body	Duplex Stainless Steel	ASTM A890 F51	Offshore applications
Body	Super Duplex Stainless Steel	ASTM A890 F53 / F55 / 2507	High chloride environments
Body	Aluminium Bronze	ASTM B148 C95800	Seawater and marine service

Optional Material Configurations:

• Hastelloy C276 alloy for corrosive applications
• Alloy 20 (CN7M) alloy for acid conditions
• Inconel 625/718 alloys for high temperature applications
• Low Temperature Carbon Steel (LCB) for low temperature applications
• Special seatings & trim materials for special project applications

Lug Type Butterfly Valve Design Features:

Valve Type: Lug Type Butterfly Valve

Operation:

• Lever Operated

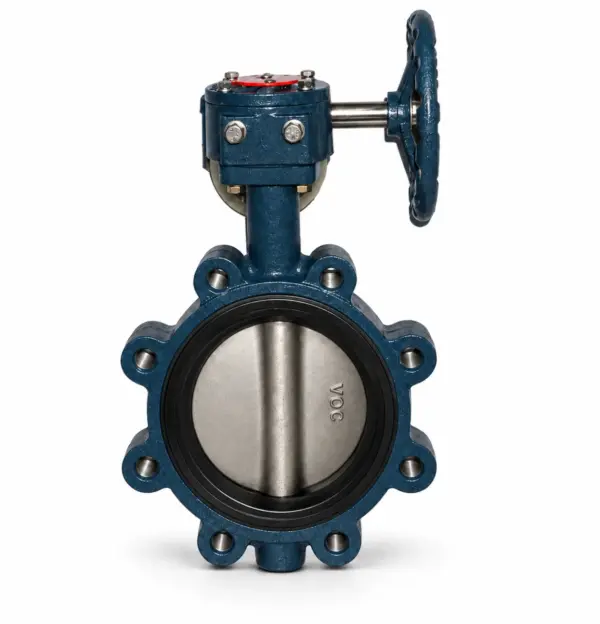

• Gear Operated
• Pneumatic Actuated
• Electric Actuated

Body Construction:

Lug Type Body

Disc Design: Concentric Disc

Mounting: ISO 5211 Direct Mounting Pad

Performance features:

• Independent flange mounting
• Dead-end service application ideal
• Bubble-tight sealing action
• Compact and light-weight design
• Minimum torque operation required
• Simple valve change-out without dismantling entire pipe line
• Manual as well as automatic operation facility
• Long service life with minimum maintenance requirements

Inspection and Testing:

• Hydrostatic Pressure Testing
• API 598 Seat Leakage Testing
• ISO 5208 Leakage Testing
• Operational Torque Testing
• Visual and Dimensional Inspection

Lug Type Butterfly Valve End Configurations:

Our Lug Type Butterfly Valve is manufactured to provide secure installation and simplified maintenance across industrial piping systems.

• Lug Type End Connection
• ISO 5211 Mounting Pad for actuator installation
• Compatible with manual and automated actuation
• Customized drilling patterns available upon request
• Project-specific configurations available to meet customer requirements

Lug Type Butterfly Valve Industrial Services:

• Water Treatment Plants: Distribution systems, filtration and pumping system
• Wastewater Treatment Plants: Process isolation and flow control
• Fire Protection Systems: Distribution and isolation
• Chemical Processing Industry: Handling corrosive fluids and process lines
• Oil and Gas Industry: Utility services and process lines
• Petrochemical Industry: Cooling water distribution and auxiliary process lines
• Marine Industry: Seawater distribution and utility services
• Power Generation Plants: Cooling water distribution and utility services
• Pipeline Systems: Distribution systems with reliable quarter turn isolation
