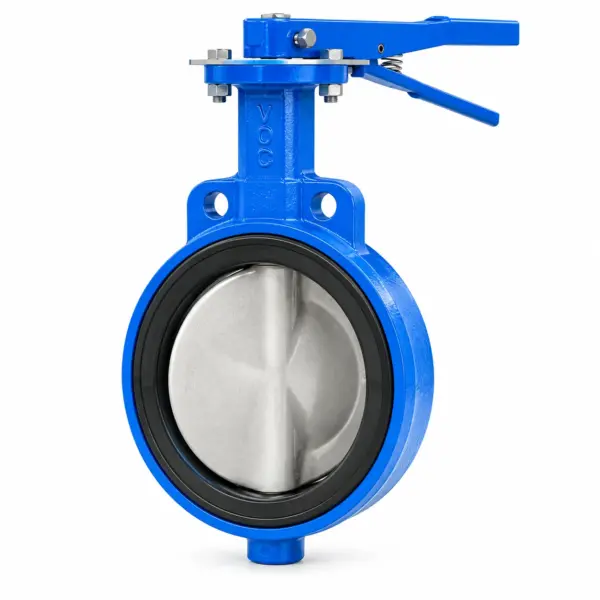

Resilient Seated Butterfly Valve

Designed for dependable isolation in water and general industrial services, a Resilient Seated Butterfly Valve Manufacturer in Canada supplies valves with a compact construction and tight shut-off. The resilient elastomer seat seals against the disc to minimise leakage and provides smooth operation with relatively low operating torque.

Resilient seated butterfly valves are widely used in water distribution, wastewater treatment, irrigation, fire protection and industrial utility systems where reliable flow isolation is required.

Features

• Resilient elastomer seat for tight shut-off
• Concentric or zero-offset disc design
• Compact and lightweight construction
• Low operating torque
• Wafer, lug and double-flanged configurations
• Manual, gear, pneumatic and electric actuation
• Suitable for water and general utility services
• Bidirectional shut-off

Technical Specifications

Parameter	Specification
Valve Type	Resilient Seated Butterfly Valve
Design	Concentric / Zero-Offset Disc
Nominal Size	DN50 to DN1200
Pressure Rating	PN10, PN16, PN25 / ASME Class 150
Body Materials	Ductile Iron ASTM A536 / Cast Iron ASTM A126 / Carbon Steel ASTM A216 WCB / Stainless Steel ASTM A351 CF8M
Seat Design	Resilient, Replaceable or Bonded
Seat Materials	EPDM / NBR
End Connections	Wafer / Lug / Double Flanged
Flow Direction	Bidirectional
Face-to-Face Dimensions	ASME B16.10
Actuation	Manual / Gear / Pneumatic / Electric
Actuator Mounting	ISO 5211

Standards and Testing

Resilient seated butterfly valves can be manufactured in accordance with API 609 and MSS SP-67. Face-to-face dimensions are covered by ASME B16.10, while applicable inspection and pressure testing can follow API 598. For waterworks applications, AWWA C504 provides requirements for rubber-seated butterfly valves.

Industries Served in Canada

Water & Wastewater Municipal Water Supply Irrigation & Agriculture

Fire Protection Industrial Utilities Mining & Process Water Desalination & Water Treatment
