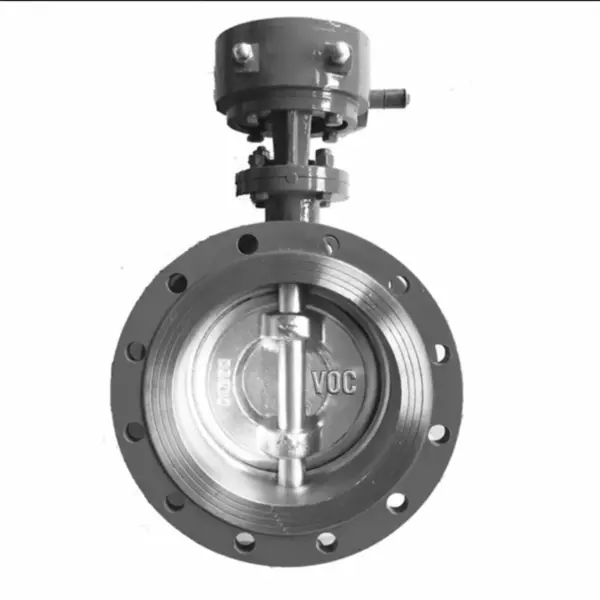

High-Performance Butterfly Valve
High-Performance Butterfly Valve Manufacturer in Canada offering soft or metal seats, Class 150–600 and actuator options for oil and gas pipeline isolation.
High-performance butterfly valves are designed for reliable isolation and flow control in demanding industrial piping systems. Their double-offset disc and shaft arrangement reduces contact between the disc and seat during operation, helping minimise seat wear and support consistent sealing over repeated cycles.
As a High-Performance Butterfly Valve Manufacturer in Canada, Valves Only Canada supplies these valves for oil and gas, chemical processing, power generation, water and wastewater, mining and other industrial applications. Soft-seated configurations provide tight shut-off in compatible services, while metal-seated designs are available for higher-temperature and demanding operating conditions.
Features
- Double-offset disc and shaft arrangement
- Reduced disc-to-seat contact during operation
- Soft-seat and metal-seat configurations
- Compact construction for industrial piping systems
- Anti-blowout stem design
- Manual, gear-operated and automated configurations
- Suitable for isolation and flow control applications
- Fire-safe configurations available for qualified designs
- Wafer, lug and double-flanged configurations
Technical Specifications
| Parameter | Specification |
| Valve Type | High-Performance Butterfly Valve |
| Design | Double-offset disc and shaft arrangement |
| Nominal Size | DN50 to DN1200 |
| Pressure Rating | ASME Class 150, 300 and 600 |
| Body Material | Carbon Steel ASTM A216 WCB, Stainless Steel ASTM A351 CF8/CF8M/CF3M, Duplex Stainless Steel ASTM A995 Grade 4A, Super Duplex Stainless Steel ASTM A995 Grade 5A/6A |
| Seat Design | Soft seat or metal seat |
| Seat Material | PTFE, RPTFE or metal sealing system; PEEK in qualified designs |
| Flow Direction | Preferred-direction sealing; bidirectional configurations available |
| End Connections | Wafer, Lug or Double Flanged |
| Stem Design | Anti-blowout |
| Actuation | Lever, Gear, Pneumatic or Electric |
| Actuator Mounting | ISO 5211 mounting interface |
Standards and Testing
High-performance butterfly valves are manufactured to applicable requirements of API 609 and ASME B16.34. Flange dimensions follow ASME B16.5 or ASME B16.47 where applicable, while pressure testing can be performed in accordance with API 598.
Seat leakage requirements correspond to the selected sealing arrangement. Fire-safe configurations are tested and certified to API 607 or API 6FA for the applicable valve configuration.
