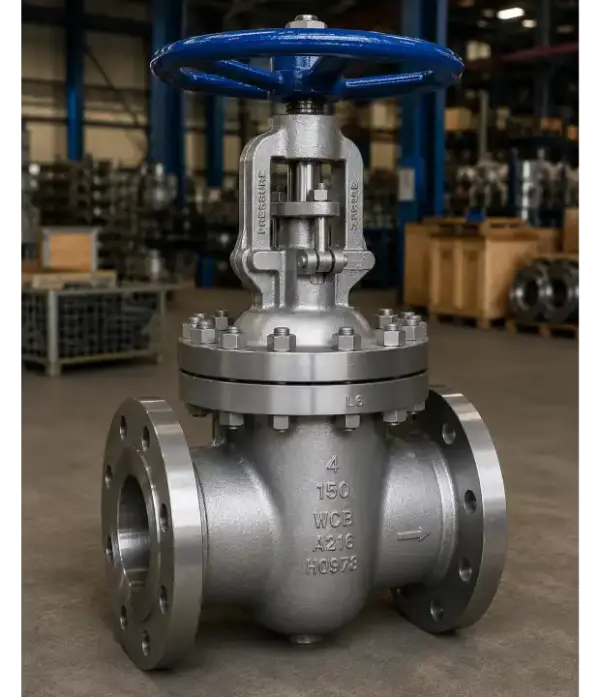

Pressure Seal Gate Valve Technical Profile:

• Nominal Size: 2″ to 48″
• Pressure Class: Class 600 to Class 2500
• Temperature Range: -29°C to +650°C
• Design Standards: API 600, ASME B16.34
• Face to Face: ASME B16.10
• Inspection and Testing: API 598, ISO 5208
• Construction Type: Pressure Seal Bonnet, OS&Y, Flexible Wedge, Bolted Yoke

Pressure Seal Gate Valve Design: Configuration

Pressure Boundary Parts:

• ASTM A216 WCB
• ASTM A217 WC6
• ASTM A217 WC9
• ASTM A182 F11
• ASTM A182 F22
• ASTM A182 F91
• ASTM A351 CF8M
• ASTM A182 F316

Valve Operating Parts:

• Gate: Flexible Wedge / Solid Wedge
• Stem: ASTM A182 F6a / F304 / F316
• Stem Nut: High Strength Bronze / Alloy Steel
• Backseat: Integral Backseat Design

Pressure Seal Components

• Seat Ring: Renewable Seat Ring with Stellite Overlay
• Packing: Flexible Graphite
• Pressure Seal Gasket: Stainless Steel with Graphite
• Stem Seal: Low Emission Packing available for API 624 and ISO 15848 compliance

Pressure Seal Gate Valve Operating Principle:

Pressure Seal Gate Valve is designed for reliable on-off isolation in high-pressure and high-temperature piping systems. The valve operates through the linear movement of a flexible or solid wedge that travels perpendicular to the flow path, providing full bore flow with minimal pressure loss when fully open. Unlike conventional bolted bonnet valves, the pressure seal bonnet utilizes internal system pressure to increase the sealing force between the bonnet and body, creating a self-energizing seal that becomes more effective as pressure rises. This design minimizes external leakage, reduces maintenance requirements, and ensures dependable performance in severe service applications such as power generation, refineries, petrochemical plants, and steam distribution systems.

Pressure Seal Gate Valve Industrial Applications:

• Power generation plants: High-pressure steam isolation in boilers, turbines, and main steam lines.
• Oil refineries: Reliable shut-off in high-pressure hydrocarbon processing units.
• Petrochemical plants: Isolation of process fluids under elevated pressure and temperature conditions.
• Steam generation systems: Full bore isolation in superheated steam and condensate pipelines.
• Oil and gas industry: Critical isolation in upstream, midstream, and downstream processing facilities.
• Chemical processing plants: Handling corrosive and hazardous process media with specialized material grades.
• Fertilizer plants: Isolation of ammonia, urea, and chemical process lines.
• Marine and offshore facilities: High-pressure utility and process piping systems.
• Industrial processing plants: Reliable isolation in severe service applications requiring long operational life.

Pressure Seal Gate Valve Material Selection:

Standard Material Grades:

Component	Material	Grade	Typical Application
Body	Carbon Steel	ASTM A216 WCB	High-pressure oil, gas and steam service
Body	Chrome Moly Steel	ASTM A217 WC6	High-temperature steam pipelines
Body	Chrome Moly Steel	ASTM A217 WC9	Power plants and refinery applications
Body	Forged Alloy Steel	ASTM A182 F11 / F22	High-pressure process systems
Body	Chrome Moly Alloy Steel	ASTM A182 F91	Superheated steam and severe service
Body	Stainless Steel	ASTM A351 CF8M	Corrosive process media
Gate	Stainless Steel	ASTM A182 F304 / F316	Reliable isolation and corrosion resistance
Stem	Stainless Steel	ASTM A182 F6a / F304 / F316	Smooth valve operation
Seat Ring	Stainless Steel with Stellite Overlay	Hard Faced	Wear resistance and tight shut-off

Special Material Options:

• Low Temperature Carbon Steel (LCB / LCC) for cryogenic and low-temperature service
• Duplex Stainless Steel (F51) for offshore and seawater applications
• Super Duplex Stainless Steel (F53 / F55) for high chloride environments
• Alloy 20 (CN7M) for acidic chemical processing
• Hastelloy C276 for aggressive chemical service
• Inconel 625 / 718 for high-temperature and severe service applications
• Monel 400 for marine and saltwater environments

Pressure Seal Gate Valve Technical Specifications:

Parameter	Specification
Valve Type	Pressure Seal Gate Valve
Operation	Manual / Gear Operated / Electric Actuated / Pneumatic Actuated
Bonnet Design	Pressure Seal Bonnet
Gate Design	Flexible Wedge / Solid Wedge
Flow Characteristics	Full Bore Isolation
Leakage Control	Tight Shut-Off
Pressure Capability	Class 600 to Class 2500
Temperature Capability	Suitable for service from -29°C to +650°C
Service Media	Steam, Oil, Gas, Water, Condensate and Process Fluids

Pressure Seal Gate Valve Connection Options:

• Raised Face (RF) as per ASME B16.5
• Ring Type Joint (RTJ) as per ASME B16.5
• Butt Weld (BW) as per ASME B16.25
• Custom end connections available to suit project specifications
