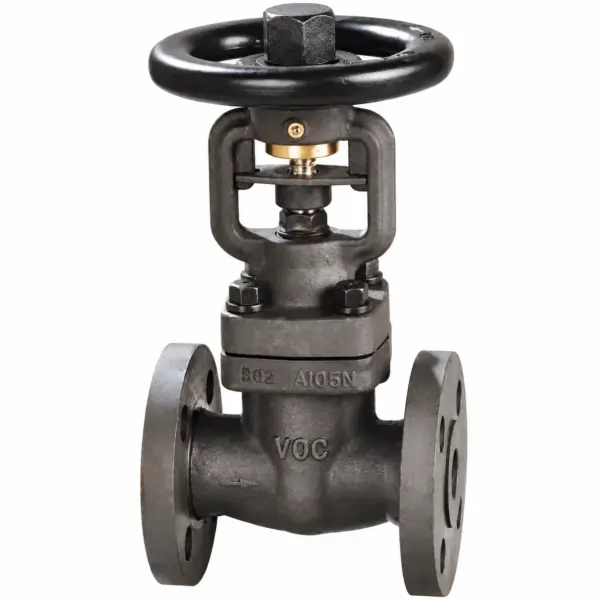

Forged Steel Gate Valve

A Forged Steel Gate Valve Manufacturer in Canada, Valves Only Canada supplies compact forged gate valves for high-pressure isolation and process piping. The forged body provides a pressure-containing construction with high mechanical strength, while the gate moves perpendicular to the flow path to provide shut-off. A full-port design minimizes flow resistance when the valve is fully open.

Features

• Forged steel pressure-containing body
• Full-port flow passage
• Rising stem for valve-position indication
• Outside screw and yoke construction
• Metal-seated wedge design
• Compact construction for high-pressure piping
• Bolted bonnet or welded bonnet configurations
• Handwheel or gear operation
• Flanged, threaded or welded connections
• Suitable for isolation service

Applications & Industries

Applications	Industries
High-pressure isolation	Oil & Gas
Process-line isolation	Refineries & Petrochemical
Steam isolation	Power Generation
Gas isolation	Chemical Processing
Water and utility isolation	Steam & Utility Systems
Pipeline isolation	Industrial Manufacturing
Equipment isolation	Process Piping
Maintenance isolation	Pipeline Infrastructure

Technical Specifications

Parameter	Specification
Valve Type	Forged Steel Gate Valve
Design	Wedge Gate / Solid Wedge / Flexible Wedge
Nominal Size	DN15–DN100
Pressure Rating	Class 150, 300, 600, 800, 1500, 2500
Body Materials	ASTM A105 / ASTM A182 F304, F304L, F316, F316L, F5, F11, F22
Flow Passage	Full Port
Stem	Rising Stem / Outside Screw and Yoke
Seat	Metal Seated
End Connections	Flanged / Threaded / Socket-Weld / Butt-Weld
Operation	Handwheel / Gear Operator
Media	Oil, Gas, Steam, Water and Compatible Process Fluids

Standards & Testing

API 602 covers compact forged-steel gate valves within its scope. API 598 specifies pressure-testing requirements. ASME B16.5 applies to flanged connections, ASME B16.10 to face-to-face dimensions and ASME B16.25 to butt-welding ends where applicable.
