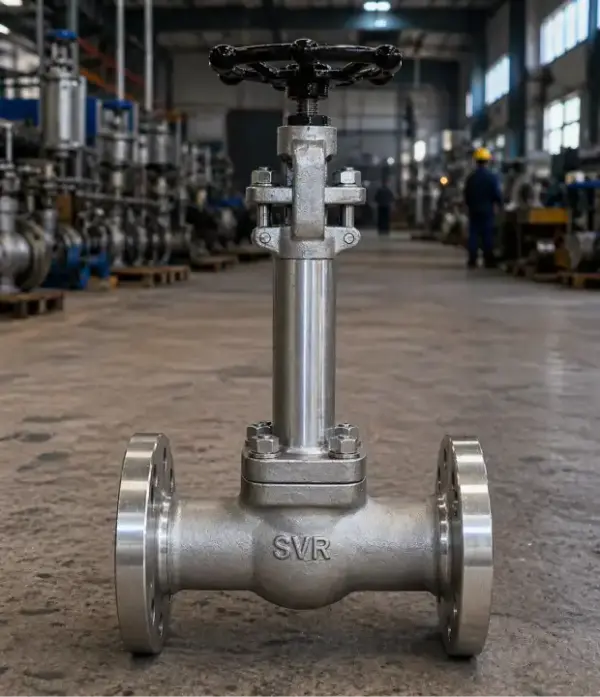

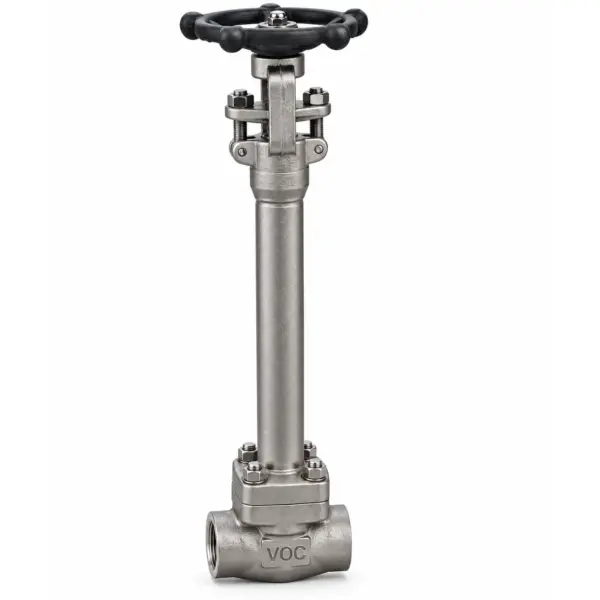

Cryogenic Gate Valve

Categories: ,

Cryogenic Gate Valve Manufacturer in Canada

Cryogenic gate valves are engineered for dependable flow blockage in LNG, liquid nitrogen, liquid oxygen, hydrogen, and various other ultra-low-temperature uses. Thanks to an extended bonnet and components designed for low temperatures, they ensure reliable sealing and smooth functionality at temperatures as low as -196°C. ValvesOnly Canada is the leading Cryogenic Gate Valve Manufacturer in Canada, serving industries in Toronto, Calgary, Edmonton, Vancouver, Montreal, and across Canada.

Cryogenic Gate Valve Product Specifications:

  • Nominal Size: ½” to 48″
  • Pressure Class: Class 150 to Class 2500
  • Temperature Range: -196°C to 200°C
  • End Connections: Flanged, Butt Weld, Socket Weld
  • Operation: Manual, Gear Operated, Pneumatic Actuated, Electric Actuated
  • Design Standards: API 600, ASME B16.34, BS 6364, ISO 28921
  • Inspection and Testing: Cryogenic Temperature Test, Hydrostatic Pressure Test, Seat Leakage Test, Low Temperature Operational Test

Cryogenic Gate Valve Material Configuration:

Body and Pressure Retaining Parts:

  • ASTM A182 F304 / F304L
  • ASTM A351 CF8 / CF8M
  • ASTM A182 F316 / F316L
  • ASTM A352 LCB / LCC
  • ASTM A350 LF2
  • ASTM A890 F51
  • ASTM A890 F53 / F55 / 2507
  • ASTM B564 Hastelloy C276
  • ASTM B564 Inconel 625 / 718

Flow Control Components:

  • Gate: Stainless Steel / Duplex Stainless Steel / Super Duplex
  • Stem: Stainless Steel ASTM A182 F304 / F316
  • Seat Ring: Stainless Steel

Cryogenic Gate Valve Sealing Configuration:

  • Seat: Metal Seated
  • Gasket: Spiral Wound Graphite
  • Packing: Low Temperature Graphite

Cryogenic Gate Valve Working Mechanism:

A rising stem technique is used to operate a cryogenic gate valve, which elevates or lowers a wedge gate to offer total flow isolation. The gate completely exits the flow channel when fully open, reducing pressure drop and allowing for unrestricted flow through the pipeline.

Its extended hood maintains easy operation and dependable shut-off in low temperature applications down to -196°C, all while keeping the stem packing away from cryogenic temperatures and safeguarding the sealing components from severe cold.

Cryogenic Gate Valve Material Options:

Standard Materials:

Component Material Grade Typical Application
Body Stainless Steel ASTM A182 F304 / F304L, ASTM A351 CF8 / CF8M, ASTM A182 F316 / F316L LNG and industrial gas service
Body Low Temperature Carbon Steel ASTM A352 LCB / LCC, ASTM A350 LF2 Cryogenic pipeline systems
Body Duplex Stainless Steel ASTM A890 F51 Corrosive cryogenic applications
Body Super Duplex Stainless Steel ASTM A890 F53 / F55 / 2507 Marine LNG terminals
Body Hastelloy ASTM B564 C276 Aggressive chemical service
Body Inconel ASTM B564 625 / 718 High-pressure cryogenic systems

Additional Material Options:

  • Stainless Steel ASTM A351 CF8/CF8M/CF3M suitable for cryogenic as well as corrosive service
  • Duplex Stainless Steel (ASTM A890 F51) for low-temperature and corrosive service
  • Inconel 625 / Inconel 825 for very low-temperature and corrosive
  • Hard-faced seating materials for extended wear resistance
  • Customized trim materials based on operating conditions
  • Special alloy configurations available upon request

Cryogenic Gate Valve Product Features:

Valve Type: Cryogenic Gate Valve

Operation:

  • Manual
  • Gear Operated
  • Pneumatic Actuated
  • Electric Actuated’

Body Construction: Bolted Bonnet with Extended Bonnet

Design: Rising Stem, OS&Y

Performance Features:

  • Extended bonnet to protect the stem seal
  • Full-bore flow path to reduce pressure drop
  • Bidirectional sealing reliability
  • Stem blowout protection
  • Free from jamming even at cryogenic temperatures
  • Can be used manually or automatically
  • Maintenance free and long service life
  • Provides excellent isolation in LNG and industrial gas systems

Inspection Procedures:

  • Cryogenic Temperature Testing
  • Hydrostatic Pressure Testing
  • Seat Leakage Testing
  • Low Temperature Operational Testing
  • Functional and Visual Inspection

Cryogenic Gate Valve Connection Options:

Our Cryogenic Gate Valve is available with multiple connection configurations to suit cryogenic process systems and industrial installations.

  • Flanged per ASME B16.5
  • Butt Weld per ASME B16.25
  • Socket Weld
  • End connection can be customized according to project specifications
  • End preparation can be customized as per requirement

Typical Applications of Gate Valves:

  • LNG terminal facilities: Storage tanks, transfer lines, and loading facilities
  • LNG carriers: Onboard cargo systems and transfer lines
  • Air separation facilities: Plants for oxygen, nitrogen, and argon
  • LOX (liquid oxygen): Storage facilities and distribution lines
  • LIN (liquid nitrogen): Transfer facilities and processing systems
  • Liquid hydrogen processing: Low temperature isolation systems
  • Bulk gas distribution: Storage tanks and filling stations
  • Cryogenic bulk tanks: Isolation and transfer lines
  • Energy and utility facilities: Process systems
