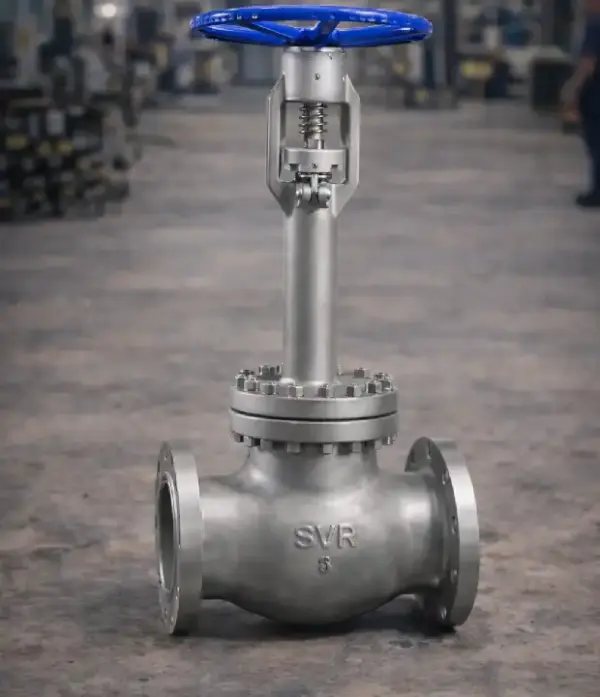

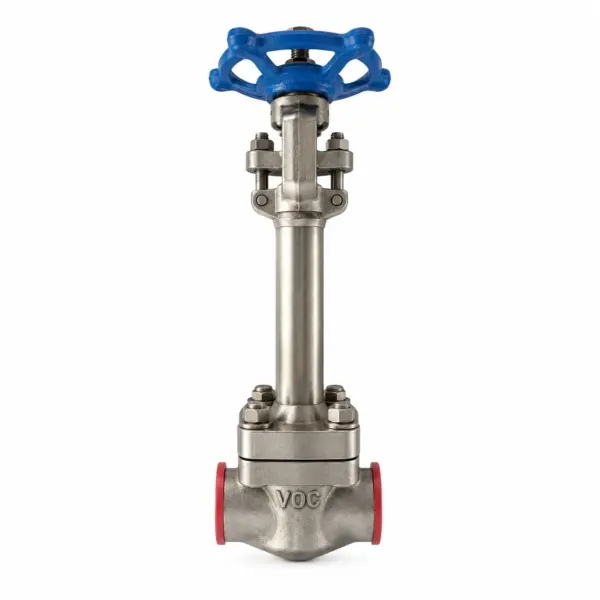

Cryogenic Globe Valve Manufacturer in Canada

Designed for precise control of flow in very low-temperature conditions, cryogenic globe valves offer accurate flow control, effective shut-off, and good sealing properties. With an extended bonnet design and cryogenic alloy materials, these valves function efficiently in low-temperature systems such as liquefied natural gas or liquid oxygen/nitrogen. ValvesOnly Canada is a well known Cryogenic Globe Valve Manufacturer in Canada, offering industries across Toronto, Calgary, Edmonton, Vancouver, Montreal, and throughout Canada.

Cryogenic Globe Valve Engineering Specifications:

• Nominal Size: ½” to 24″
• Pressure Class: Class 150 to Class 2500
• Temperature Range: -196°C to 200°C
• End Connections: Flanged, Butt Weld, Socket Weld
• Operation: Manual, Pneumatic Actuated, Electric Actuated, Gear Operated
• Design: Bolted Bonnet, Extended Bonnet
• Design Standards: API 623, ASME B16.34, BS 6364, ISO 28921, API 598
• Inspection and Testing: Cryogenic Temperature Test, Hydrostatic Pressure Test, Seat Leakage Test, Operational Test

Cryogenic Globe Valve Construction Materials:

Body and Pressure Retaining Parts:

• ASTM A182 F304 / F304L
• ASTM A351 CF8 / CF8M
• ASTM A182 F316 / F316L
• ASTM A352 LCB / LCC
• ASTM A890 F51
• ASTM A890 F53 / F55 / 2507
• ASTM B564 Hastelloy C276
• ASTM B564 Inconel 625 / 718

Internal Components:

• Disc: Stainless Steel / Duplex Stainless Steel / Super Duplex
• Stem: ASTM A182 F304 / F316
• Seat Ring: Stainless Steel

Cryogenic Globe Valve Sealing Components:

• Seat: Metal Seated
• Gasket: Spiral Wound Graphite
• Packing: Low Temperature Graphite

Cryogenic Globe Valve Working Principle:

A Cryogenic Globe Valve manages flow by shifting a disc vertically closer to or farther from a stationary seat, which enables accurate throttling and trustworthy shut-off. The operating cycle’s excellent sealing performance is maintained by the linear motion design, which also allows for accurate control of the flow rate.

It ensures flawless functioning at temperatures as low as -196°C in challenging cryogenic systems by keeping the stem packing above the cryogenic zone and safeguarding the sealing components from thermal contraction thanks to its prolonged bonnet.

Cryogenic Globe Valve Material Specifications:

Standard Materials:

Component	Material	Grade	Typical Application
Body	Stainless Steel	ASTM A182 F304 / F304L, ASTM A351 CF8 / CF8M, ASTM A182 F316 / F316L	LNG and industrial gas systems
Body	Low Temperature Carbon Steel	ASTM A352 LCB / LCC	Cryogenic pipelines
Body	Duplex Stainless Steel	ASTM A890 F51	Corrosive cryogenic service
Body	Super Duplex Stainless Steel	ASTM A890 F53 / F55 / 2507	Marine LNG terminals
Body	Hastelloy	ASTM B564 C276	Aggressive chemical service
Body	Inconel	ASTM B564 625 / 718	High-pressure cryogenic systems

Additional Material Options:

• Durable seat material for increased wear resistance
• Tailored trimming material for extreme operating environment
• Special alloys can be provided as per request

Cryogenic Globe Valve Product Features:

Valve Type: Cryogenic Globe Valve

Operation:

• Manual
• Gear Operated
• Pneumatic Actuated
• Electric Actuated

Body Construction: Bolted Bonnet with Extended Bonnet

Flow Pattern: Linear Motion Globe Design

Performance Features:

• Longer bonnet for protecting stem packing
• Proper control of flow rate and throttle
• Bubble tight shut-off
• Low temperature resistant design
• Cryogenic valve function with smooth operation
• Applicable for both manual and automatic operations
• Long-term functionality with minimal maintenance
• Excellent performance in LNG and industrial gas applications

Inspection Procedures:

• Cryogenic Temperature Testing
• Hydrostatic Pressure Testing
• Seat Leakage Testing
• Operational Performance Testing
• Functional and Visual Inspection

Cryogenic Globe Valve Connection Options:

Our Cryogenic Globe Valve is available with multiple end connection configurations to suit cryogenic process systems and industrial installations.

• Flanged as per ASME B16.5
• Butt Weld as per ASME B16.25
• Socket Weld
• Customized end connections available based on project specifications
• Special end preparations available upon request

Cryogenic Globe Valve Industrial Applications:

• LNG import/export terminal: Transfer and storage system
• Air separation plant: Oxygen, nitrogen, and argon production plant
• Liquid oxygen plant (LOX): Storage and pipeline transfer system
• Liquid nitrogen plant (LIN): Low temperature process and transfer system
• Liquid hydrogen plant: Cryogenic process isolation and control
• Cryogenic storage tank: Inlet, outlet, and transfer line control
• Industrial gas distribution system: Gas storage and transport system
• Aerospace ground support system: Cryogenic fuel transfer system
• Energy and utility project: Low temperature process system
